2.1 Reverse Osmosis



Reverse Osmosis

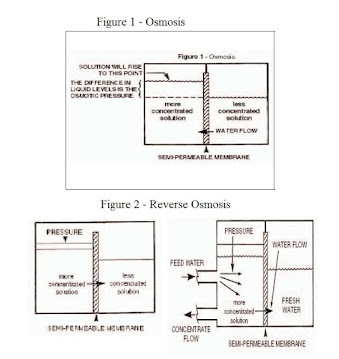

Reverse osmosis uses the fact that when solutions of differing concentrations are separated by a semi-permeable membrane, water from less concentrated solution passes through the membrane to dilute the liquid of high concentration. If the solution of high concentration is pressurized, the process is reversed and the water from the solution of high concentration flows to the weaker solution. This is known as reverse osmosis. The quality of water produced depends upon the concentration of the solution on the high-pressure side and pressure differential across the membrane. This process is suitable for waters with very high TDS, such as sea water.

The   semi permeable    nature of the membrane allows the water to pass much more readily than the dissolved minerals. Since the water in the less concentrated solution seeks to dilute the more concentrated solution, the water passage through the membrane generates a noticeable head difference between the two solutions. This head difference is a measure of the concentration difference of the two solutions and is referred to as the osmotic pressure difference.

When a pressure is applied to the concentrated solution which is great that the osmotic pressure difference, the direction of water passage through the membrane is reversed and the process that we refer to as reverse osmosis is established. That is, the membrane's ability to selectively pass water is unchanged, only the direction of the water flow is changed. The feed water and concentrate (reject stream) ports illustrates a continuously operating RO system.

Line diagrams of RO with UV system are given below. In this plant, RO water is used for food processing, so UV system are installed in RO product line.

Chemical cleaning of RO membrane:

Membranes can become contaminated after they have been used for some time, with pollutants such as colloids, bio films and biological matter. These contaminants can absorb to the membrane surface and the pipes of the membrane system and consequentially, the performance of the system will decrease. The system may even be seriously damaged. That is why a system needs cleaning periodically.
Membranes are cleaned by High pH and Low pH RO water.

Line diagram of RO membrane cleaning:
